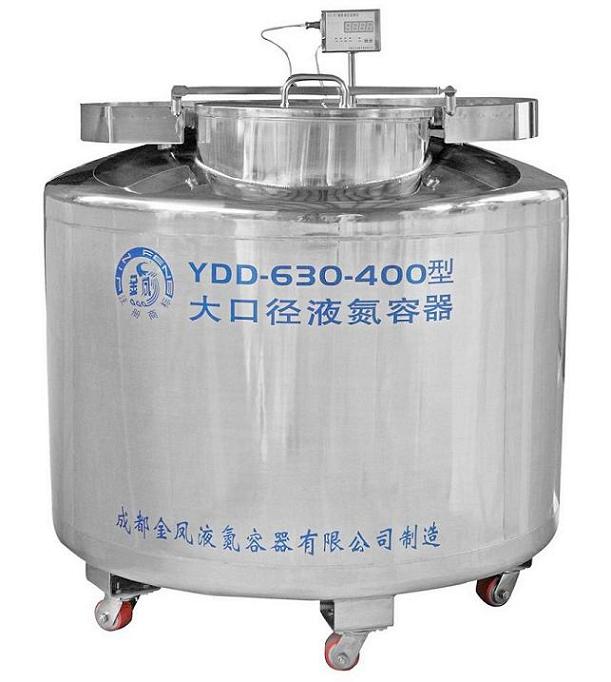

YDD-630-400 Large Caliber Liquid Nitrogen Container
The product is designed and manufactured in accordance with National Standard GB14174. The mouth employs the structure of eccentricity, suitable for storing biological samples in large capacity in static station for a long period, especially suitable for storing cell and blood for a long period. It features in large capacity, reliable and easy operation.
Main characteristics:
Made of Austenitic stainless steel;
The mouth employs the structure of eccentricity, with large capacity, decreasing the loss rate of LN2;
Revolving Tray for depositing racks, easily accessed biological samples;
Liquid Nitrogen Level Alarm, monitoring the level of LN2 at any moment;
High strength and durable Rollers at the bottom of the container;
Not need open the cover while filling LN2;
Lockable Device, for easy management;
Not less than eight-year life span guarantee.
Specifications:
Capacity
(L)
Empty Weight
(Kg)
Caliber
(mm)
Outer Diameter
(mm)

Height
(mm)
Daily Loss
Rate (%)
Caliber of
Rack(mm)
Number of
Racks (n)
Straw Capacity
(n)
Outer
Inner
0.25ml
0.5ml
630
405
400
1212
1180
≤1.0
76
73
126
378000
163300
