Accessory

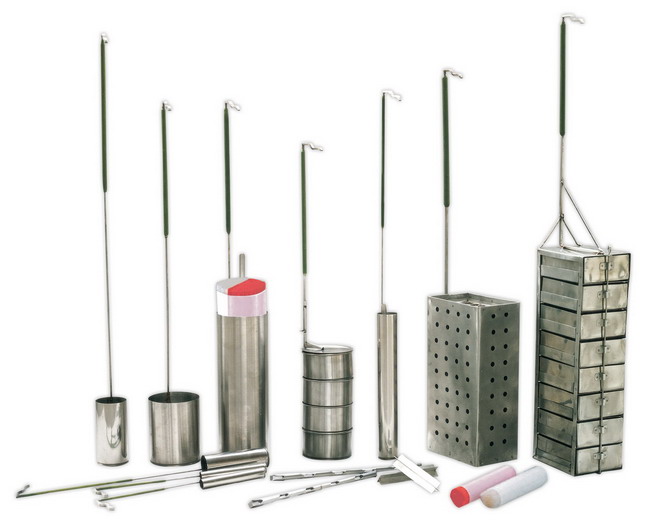

Canister
Various canisters can meet the customers’ requirements. Canisters with double level can increase the
capacity of biological samples stored. Moreover, there are canes and clapboards as accessories of
canisters for customers’ choices.

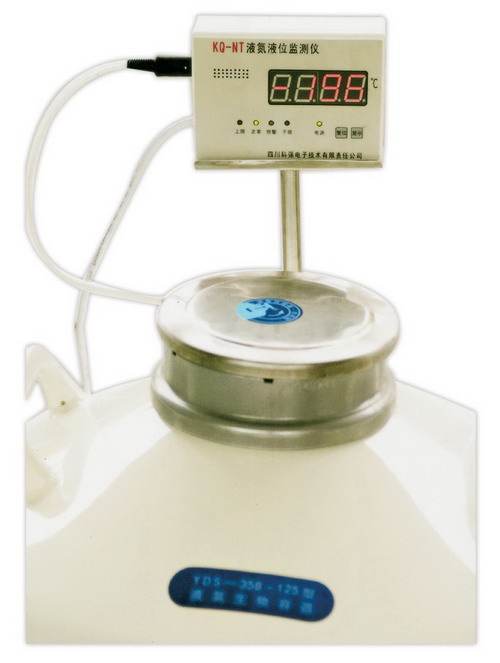

Liquid Nitrogen Level Alarm

The Liquid Nitrogen Level Alarm is installed on the Evacuating Nozzle, with two platinum
probes extending in the container.  Upon starting , it can check the inner temperature of
biological samples or capacity of liquid nitrogen automatically. It will keep alarm if
exceeding the limit of temperature or capacity. It is small, reliable and precise.

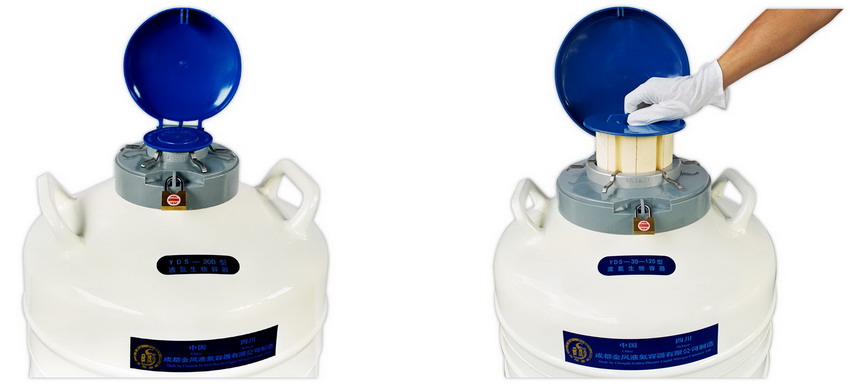

Lockable  Device

The lockable device is made of low temperature-resistant strong plastic,consisting of gray base and blue cover.The keyhole on gray bases is convenient for being locked by clients (If any) in favor of preserving biological
samples.If fitted with the lockable device on the container ,the height of the container will be higher than the
figure in the specifications.

Protective Sheath

Liquid Nitrogen Containers of the capacity less than 13L (including 13L) are with leatheroid protective
backpack, which enhances the protection from reel and stumble: Liquid Nitrogen Container of the capacity
15L ~50L are with leatheroid protective sheath ,which enhances the protection from reel and stumble.

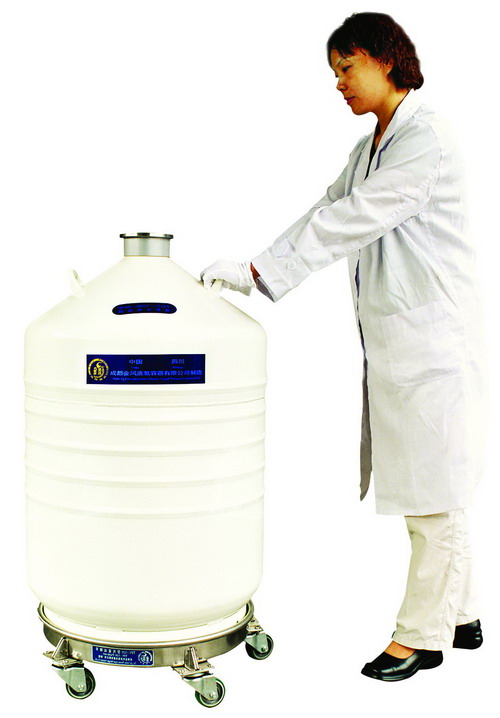

Liquid Nitrogen Carrying Cart

The series products are suitable for transporting large liquid nitrogen containers (over 30L) ,solving the difficulties
of the large containers transportation .Putting the container in the groove of the carrying cart, you can move  it easily
by hand. It is convenient, reliable and laborsaving.

Mode
Range of containers
Capacity(L)
Weight
(Kg)
Dimension
(mm)
Max.carrying
capacity(kg)
Material
Outer Diameter
Height


TPC-430


30~50
4.8
570
130
70
Stainless Steel
5.0
570
130
70
Carbon Steel


TPC-430


≥100
8.2
640
180
200
Stainless Steel
8.5
640
180
200
Carbon Steel

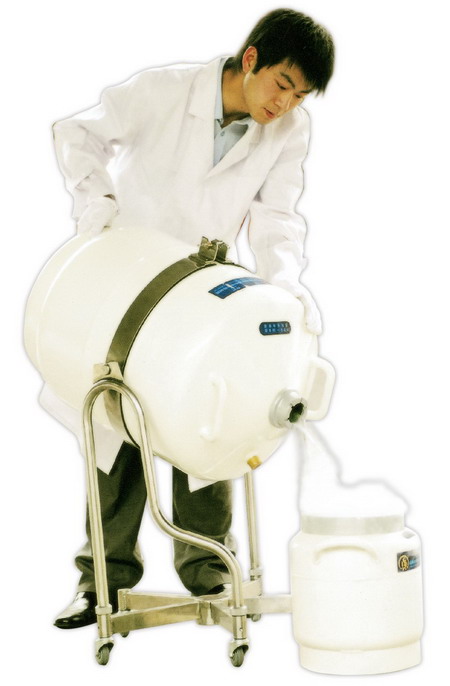

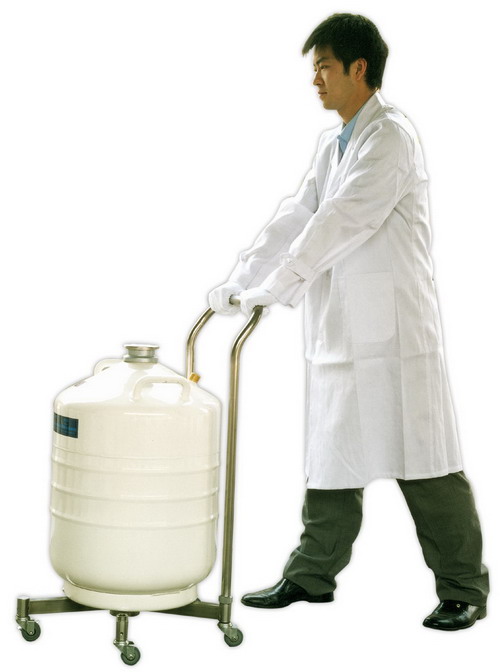

Liquid Nitrogen Pushcart

The series products are suitable for transporting large liquid nitrogen containers(over 30L),solving the difficulties of the large containers transportation .Putting the container in the groove of the carrying cart, you can move it easily by hand. It is convenient, reliable and laborsaving.

Model
Weight
(kg)

Range of containers
(L)

Capacity Dimensio (mm)
Max.carrying capacity
(kg)
Outer Diamete
Height
STC-I
5.5
20~50
600
900
70
STC-II
(with tipping stand)
8.5
30~35
600
692
70
