Transport Tank

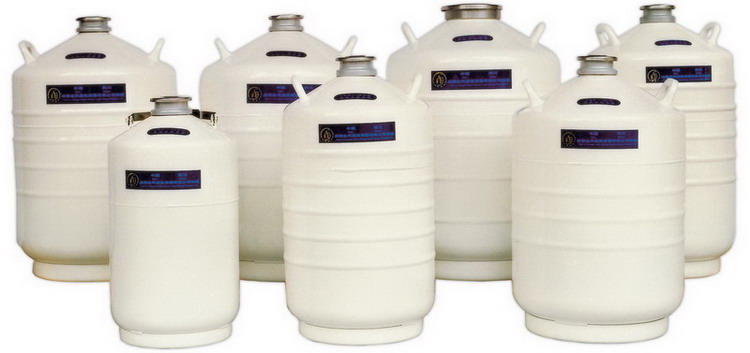

◆The front line (from left to right):YDS-10B, YDS-16B, YDS-20B
◆The back line (from left to right): YDS-30B, YDS-35B-80, YDS-26B

Liquid Nitrogen Biological Container For Transportation (I)

The series products are of moderate capacity, which are specially designed for transportation with their special side support or bottom support design ,suitable for long distance transportation and reliable.

Main Characteristics :

◆ High-strength aluminum alloy structure, light empty weight

◆ The lockable device can be installed to the container lid upon customer's requirement so as to protect biological samples stored (limit for 50mm、80mm and 125mm calibers)

◆ Encoding system is applied on canisters for easy recognition and convenient accessing of samples

◆ More than 5 years vacuum quality guarantee is ensured with the multi-layer thermal isolation design

Specifications

Model	Unit	YDS- 10B	YDS- 15B	YDS- 16B	YDS- 20B	YDS- 26B	YDS- 30B	YDS-30B -80	YDS- 35B	YDS-35B -80	YDS-35B -125
Capacity	L	10.0	16.0	17.0	20.0	26.0	31.5	31.5	35.5	35.5	35.5
Empty Weight	kg	6.8	8.7	9.1	12.5	12.8	13.3	13.8	14.3	15.2	16.4
Full Weight	kg	14.9	21.6	22.8	29.2	34.4	38.8	39.3	43.0	43.9	45.1
Neck Diameter	mm	50	50	50	50	50	50	80	50	80	125
Outer Diameter	mm	303	355	355	409	409	446	446	473	473	473
Height	mm	570	630	655	725	725	690	705	705	705	730
Static Evaporation Loss Mass	L/d	0.182	0.182	0.181	0.194	0.194	0.198	0.265	0.198	0.265	0.390
Static Holding Time	d	55	88	94	134	134	159	119	179	134	91
Canister Outer Diameter	mm	38	38	38	38	38	38	63	38	63	97
Canister Height (single/double)	mm	120	120	120/276	120/276	120/276	120/276	120/276	120/276	120/276	120/276
Number of Canisters:n	Nos	3~6	3~6	3~6	3~6	3~6	3~6	3~6	3~6	3~6	3~6
Straw Holding Capacity (single level)	0.5ml	132×n	132×n	132×n	132×n	132×n	132×n	360×n	132×n	360×n	854×n
Straw Holding Capacity (single level)	0.25ml	298×n	298×n	298×n	298×n	298×n	298×n	846×n	298×n	846×n	1992×n
Straw Holding Capacity (double level)	0.5ml	—	—	214×n	214×n	214×n	214×n	604×n	214×n	604×	1508×n
Straw Holding Capacity (double level)	0.25ml	—	—	472×n	472×n	472×n	472×n	1446×n	472×n	1446×n	3324×n

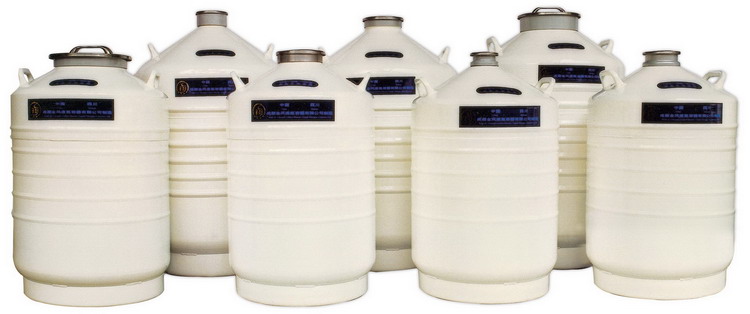

◆The first line (from left to right): YDS-50B-200, YDS-50B-125, YDS-50B, YDS-50B-80

◆The second line (from left to right): YDS-100B-80, YDS-100B-125, YDS-100B-200

Liquid Nitrogen Biological Container for transportation (II)

The series products are of big capacity, which are specially designed for transportation with their special side support or bottom support design, suitable for long distance transportation and reliable.

Main characteristics:

◆ High-strength aluminum alloy structure

◆ The outer shell of YDS-100B-80,YDS-100B-200 employs the technology of metal spining,with few welding lines and nice appearance.

◆ The lockable can be installed to the container lid upon customer's requirement (limit for 50mm、80mm and 125mm calibers)

◆ Encoding system is applied on canisters for easy recognition and convenient accessing of samples

◆ More than 5 years vacuum quality guarantee is ensured with the multi-layer thermal isolation design

Specifications

Model	Unit	YDS-50B	YDS-50B -80	YDS-50B -125	YDS-50B -200	YDS-100B -80	YDS-100B -125	YDS-100B -200
Capacity	L	50.0	50.0	50.0	50.0.	100.0	100.0	100.0
Empty Weight	kg	20.7	21.4	21.5	22.0	45.0	46	47.5
Full Weight	kg	61.1	61.8	61.9	62.4	125.8	126.8	128.3
Neck Diameter	mm	50	80	125	200	80	125	200
Outer Diameter	mm	500	500	500	500	610	610	610
Height	mm	805	805	805	800	1010	1010	1010
Static Evaporation Loss Mass	L/d	0.198	0.265	0.388	0.649	0.538	0.621	0.826
Static Holding Time	mm	252	189	129	77	186.	161	121
Canister Outer Diameter	mm	38	63	97	—	—	—	—
Canister Height (single/double)	Nos	120/276	120/276	120/276	—	—	—	—
Number of Canisters: n	0.5ml	3~6	3~6	3~6	—	—	—	—
Straw Holding Capacity (single level)	0.5ml	132×n	360×n	854×n	—	—	—	—
Straw Holding Capacity (single level)	0.25ml	298×n	846×n	1992×n	—	—	—	—
Straw Holding Capacity (double level)	0.5ml	214×n	604×n	1508×n	—	—	—	—
Straw Holding Capacity (double level)	0.25ml	472×n	1446×n	3324×n	—	—	—	—
