50m3/h Air Separation Plant
* * * * * Main technical performance table * * * * *
Model |
KZO-50 |
KZON-
50/100 |
KZN-100 |
KZNO-
100/20 |
KZON-
50/100-1 |
KZON-
20/100-1 |
KZO-50-1
(Medocal oxygen)
|
KZON-50/150 |
Quantity of air treated |
300m3/h |
480m3/h |
Oxygen outputy (m3/h) |
50 |
50 |
0 |
20 |
50 |
20 |
50 |
50 |
Nitrogen outputy (m3/h) |
0 |
100 |
100 |
100 |
100 |
100 |
0 |
150 |
Oxygen purity |
 99.5% |
99.6% |
0 |
99.5% |
99.5% |
99.5% |
99.6% |
99.6% |
Nitrogen purity |
0 |
99.6% |
99.999% |
99.999% |
99.99% |
99.99% |
0 |
 3ppmO2 |
Starting pressure (MPa) |
3.92 |
3.92 |
3.92 |
3.92 |
3.92 |
3.92 |
16 |
16 |
Normal pressure (MPa) |
1.67-2.45 |
1.67-2.45 |
1.67-2.45 |
1.67-2.45 |
2.16-2.94 |
1.96-2.94 |
1.2-1.4 |
1.2-1.4 |
Period of continuous operation (d) |
180 |
180 |
180 |
180 |
180 |
180 |
360 |
360 |
Time for starting (h) |
8 |
9 |
8 |
10 |
12 |
12 |
12 |
12 |
Total weight of the complete plant (t) |
15 |
15.5 |
12 |
16 |
17 |
16.5 |
13 |
14 |
Power consumption (KWh/Nm3O2) |
1.4 |
1.4 |
0.7 |
0.7 |
0.8 |
0.7 |
1.56 |
1.56 |
Water consumption (t/h) |
6 |
6 |
6 |
6 |
6 |
6 |
0.15 |
0.15 |
Oil consumption (g/h) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
Total power (kw) |
135 |
135 |
105 |
135 |
135 |
135 |
97.5 |
97.5 |
Operators |
4 operators/shift |
Power supply |
380V,50HZ |
80m3/h Air Separation Plant
* * * * * Main technical performance table * * * * *
Model |
KDO-80 |
KDON-80/200 |
Quantity of air treated |
600Nm3/h |
600Nm3/h |
Oxygen purity |
99.5% |
99.5% |
Oxygen outputy |
80Nm3/h |
80Nm3/h |
Nitrogen outputy |
0 |
200Nm3/h |
Nitrogen purity |
0 |
99.99% |
Starting pressure |
0.7MPa |
0.7MPa |
Normal pressure |
0.7MPa |
0.7MPa |
Period of continuous operation |
360 d |
360 d |
Time for starting |
16h |
16h |
Power consumption |
0.75Kwh/Nm3O2 |
0.75Kwh/Nm3O2 |
Water consumption |
11t |
11t |
Operators |
2-3 |
2-3 |
Total power |
92KW |
92KW |
Power supply |
380/220v,50Hz |
380/220v,50Hz |
Weight |
20T |
20T |
Can produce high-purity nitrogen the same time |
Can produce Medical oxygen and Industrial oxygen at the same time |
|
---------------------------------------------Air Compressor---------------------------------------------

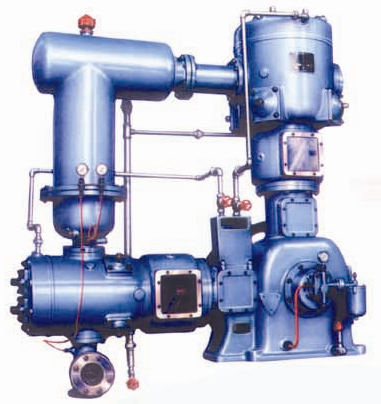

This machine is a Model L2-row3-stage fixing reciprocating compressor. It is a source of compressed air for all types of air separation plants with capacity 50Nm3/h. It is drived by a motor through av-belt. The crank drives directly gear oil pump to lubricate the moving mechanism and cylinders are lubricated by a plumger oil pump.
This machine is featured by its small size and light weight. rational structure and small space occupied etc.
 |
* * * * * Main technical parameter * * * * * |
Model |
L2-5.55/40 |
L-9.4/16 |
Delivery pressure |
3.92MPa |
1.6MPa |
Output |
5.55m3/min |
9.4m3/min |
Delivery pressure |
3.92MPa |
1.6MPa |
Speed |
500r/min |
500r/min |
Pressure of oil pump |
0.15-0.3MPa |
0.15-0.3MPa |
Water consumption |
6t/h |
7.5t/h |
Oil consumption |
50g/h |
50g/h |
Main machine weight |
2400kg |
3523kg |
Overall dimensions
(L*W*H) |
1990*900*1580mm |
2060*983*1804mm |
Motor |
Model |
Y315S-6 |
Y315S-6 |
Power |
75kw |
75kw |
Speed |
975r/min |
975r/min |
|
It is a source of compressed air for all types of air separation plants with capacity 80Nm3/h.
* * * * * Main technical parameter * * * * *
Model |
LW-11/7 |
Delivery pressure |
11m3/min |
Pressure |
0.8MPa |
Overall dimensions
(L*W*H) |
2257*812*2153mm |
Power |
65kw |
|
------------------------------------------Freon Refrigerator Set-----------------------------------------

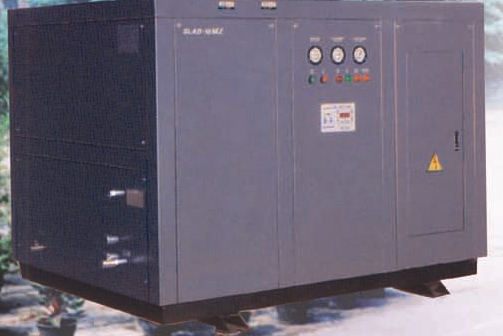

This machine can refrigorate the air to celsiur scale 3-7C before it go into the purifier, so the oil and water will be get out from the air, it can increase the ability of molecular sieve save energy and extend the plant life. This machine equiped with auto-unit, easy operate and reliable work.
80m3/h
* * * * * Main technical parameter * * * * *
Model |
UF-480/16 (50m3/h Medocal oxygen ) |
UF-660/7 (80m3/h) |
Flow rate |
480Nm3/h |
660Nm3/h |
Air pressure |
1.2-1.6MPa |
0.8MPa |
Inlet temperature |
30-45 |
313K |
Delivery temperature |
5  2 |
278K |
Weight of equipment |
751kg |
375kg |
Overall dimensions |
1060*1291*2200mm |
800*600*1500mm |
Freon pressure and refrigerator set |
Model |
JZS-2F6.3 |
|
Refrigerator Media |
F12 |
|
Motor |
JO3-100L4 3KW |
3KW |
|
-------------------------------------------------- Purifier ----------------------------------------------------

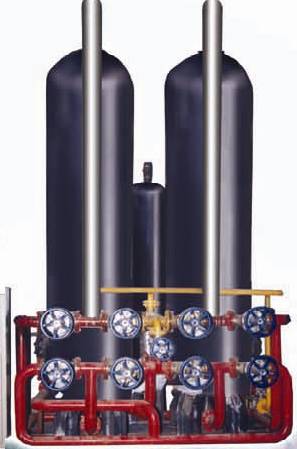

The purifier is used for absorbing the moisture, CO2 and acetylene from the air it consists of absorbers, oil-water seprator, cooling filter and electric heater.
This equipment is featured by its rational structure, easy operation, high efficiency and long life etc. It is a necessary purifying equipment for the air separation plants.
 |
 |
| 50m3/h capcaity |
80 m3/h capcity |
* * * * Main technical parameter * * * * *
Model |
HXK-300/40 (50m3/h) |
HXK-480/16 (50m3/h Medocal oxygen) |
HXK-600/7 (80m3/h) |
Quantity of air treated |
300Nm3/h |
480Nm3/h |
600Nm3/h |
Absorbing agent |
molecular sleve 13x |
molecular sleve 13x+active alumina |
molecular sleve 13x |
Max. working pressure |
3.92MPa |
1.6MPa |
|
Normal working pressure |
1.67MPa |
1.2-1.25MPa |
0.8MPa |
Period of switching over |
8h |
8h |
8h |
Regenerating media |
N2 |
N2 |
N2 |
Quantity of air regenerated |
120Nm3/h |
150Nm3/h |
|
Capacity of heater |
15kw |
18kw |
24kw |
weight of equipment |
2300kg |
2740kg |
|
Overall dimensions
(L*W*H) |
2200*1600*2930mm |
2700*2120*3800mm |
2500*1200*3500mm |
|
-----------------------------------------Reciprocating Expander-----------------------------------------

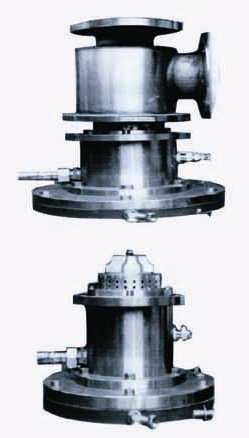

This machine is a vertical singel - cylinder single - acting reciprocating expanded adiabatically in the cylinder of this equipment and thus temperature is decreased and the cold is produced. From here the whole air separation plant achieves necessary cold.
The equipment is equipped with regulating and safety devices. Its motor is connected to the electric network outside and thus electric energy can be recoverd.
This machine is featured by its small size and light weight, compact structure, high efficiency and stable running etc.
 |
* * * * * Main technical parameter * * * * * |
Model |
PZK-5/40-6 |
Starting condition |
300Nm3/h |
Normal operation |
100-150Nm3/h |
Starting condition |
3.92MPa |
Normal operation |
1.96MPa |
Delivery pressure |
0.59MPa |
Inlet temperature |
100  |
Delirery temperature |
-130 |
Speed |
300r/min |
Main machine weight |
617kg |
Overall dimensions
(L*W*H) |
855*800*1840mm |
Motor provided |
Model |
Y160M-6 |
Power |
7.5kw |
Speed |
910r/min |
|
|
--------------------------------------------Turbine Expander--------------------------------------------
This machine is lie style one stage turbine expander with compact stucture small size and light weight. The machine is well design by taking advanced gas bearing lubricant technology. This machine is featured by its high - efficiency Low - working pressure, powerful - refrigeration and equipped with auto - prevent function easy operate and small space occupied, no pollution.
 |
 |
| 50m3/h |
80m3/h |
* * * * * Main technical parameter * * * * *
Model |
PLN-6/4.5-0.4 (50m3/h Medocal oxygen) |
PLPK-3.5/6.5-0.4 (80m3/h) |
Flow rate |
360Nm3/h |
210Nm3/h |
Speed |
58800r/min |
|
Inlet pressuer |
0.55MPa(a) |
0.65MPa(a) |
Delivery pressure |
0.14MPa(a) |
0.04MPa(a) |
Inlet temperature |
120k |
|
Lubrication may |
gas |
|
Main machine weight
(single unit) |
18.5kg |
|
-------------------------------------------Rectification Column-------------------------------------------
 |
* * * * * Main technical parameter * * * * * |
Model |
Main technical parameter |
FO-50 |
Quantity of air treated: 300m3/h
Oxygen output: 50m3/h
Oxygen purity: 99.5%
Starting pressure: 3.92MPa
Normal pressure: 1.67-2.45MPa
Time of starting: h
Period of continuous operation: 80d
Weight of equipment: 1952kg
Overall dimensions(L*W*H): 1870*900*6000mm |
FN-100 |
Quantity of air treated: 300m3/h
Nitrogen output: 100m3/h
Nitrogen purity: 10PPmO2
starting pressure: 3.92MPa
Normal pressure: 1.67-2.45MPa
Delivery pressure of nitrogen: 0.2-0.49MPa
Time of starting: 8h
Period of continuous operation: 180d
Weight of equipment: 1994kg
Overall dimensions(L*W*H): 1870*900*5900mm |
FON-50/200 |
Quantity of air treated: 300m3/h
Oxygen output: 50m3/h
Nitrogen output: 200m3/h
Oxygen purity: 99.5%
Nitrogen purity: 99.5%
Starting pressure: 3.92MPa
Normal pressure: 1.67-2.45MPa
Time of starting: 9h
Period of continuous operation: 180d
Weight of equipment: 2183kg
Overall dimensions(L*W*H): 1870*900*7300mm |
FON-50/160 |
Quantity of air treated: 300m3/h
Oxygen output: 50m3/h
Nitrogen output: 160m3/h
Output of liquid nitrogen: 15Lh
Oxygen purity: 99.5%
Purity of geseous (liquid) nitrogen: 99.999%
Starting pressure: 3.92MPa
Normal pressure: 2.16-2.94MPa
Time of starting: 12h
Period of continuous operation: 180d
Weight of equipment: 2852kg
Overall dimensions(L*W*H): 1056*2053*10200mm |
FON-20/100-1 |
Quantity of air treated: 300m3/h
Oxygen output: 20m3/h
Nitrogen output: 100m3/h
Oxygen purity: 99.5%
Nitrogen purity: 5ppmO2
Starting pressure: 3.92MPa
Normal pressure: 1.96-2.94MPa
Time of starting: 12h
Delivery pressure of nitrogen: 0.69MPa
Period of continuous operation: 180d
Weight of equipment: 2350kg
Overall dimensions(L*W*H): 1370*900*8200mm |
FO-50-1
(50m3/h Medocal oxygen)
|
Quantity of air treated: 480Nm3/h
Oxygen output: 50m3/h
Oxygen purity: 99.6%
starting pressure: 1.4-1.6MPa
Normal pressure: 1.2-1.25MPa
Time of starting: 12h
Period of continuous operation: 180d
Weight of equipment: 3330kg
Overall dimensions(L*W*H): 1300*1800*6200mm |
FO-80 |
Quantity of air treated:600m3/h
Oxygen output: 80m3/h
Oxygen purity:99.5%
starting pressure:0.7MPa
Time of starting:16h
Period of continuous operation:360d
Overall dimensions(L*W*H): 1500*1400*10000mm |
FON-80/200 |
Quantity of air treated:600m3/h
Oxygen output: 80m3/h
Nitrogen output: 200m3/h
Oxygen purity:99.5%
Nitrogen purity:99.99%
starting pressure:0.8MPa
Time of starting:16h
Period of continuous operation:360d
Overall dimensions(L*W*H): 1500*1400*11000mm |
|
-------------------------------------------Oxygen Compressor-------------------------------------------
This is a fixed vetical 3 - row 3 - stage singel - acting reciprocating compressor. coolers of all types are of hose - pipe, which surrounds the cylinder.
This machine is featured by its compact structure, small size. stable running and safe and rellable operation etc.
 |
* * * * * Main technical parameter * * * * * |
Model |
Z-1,67/150 |
Output |
100m3/h |
Max. working pressure |
14.7MPa |
Speed |
190r/min |
Main machine weight |
3200kg |
Overall dimensions
(L*W*H) |
1975*1580*2200mm |
Motor provided |
Model |
Y250M-8 |
Power |
30kw |
speed |
730r/min |
|
|
-------------------------------------------Liquid Oxygen Pump-------------------------------------------
This machine is equipped with non - stage transform speed parts, lie style, one cylinder, low - temperature reciprocating pump. The output adjusting is fulfill by non - stage transform speed part change rototional speed of the pump. This pump is featured by its small size, easy operate and reliable, stable work.
 |
* * * * * Main technical parmeter * * * * * |
Model |
BPO-7.5/6.7-221 |
Inlet pressure |
0.45-0.67MPa(a) |
Delivery pressure |
22MPa(a) |
Flow rate |
30-75L/h |
speed of pump |
45-110r/min |
Model of non-stage transform speed parts |
Fpc1-3:1*1/10R |
Overall dimensions
(L*W*H) |
1203*1110*426mm |
Weight of pump |
273kg |
Motor provided |
Model |
Y90L-4 |
Power |
|
|
-------------------------------------------------Filling Unit-------------------------------------------------
The filling unit is automatical equipment for filling the oxygen into oxygen cylinders.
 |
* * * * * Main technical parameter * * * * * |
Model |
GC-10 |
GC-20 |
Working pressure |
14.7MPa |
14.7MPa |
Filling connections |
10pcs |
20pcs |
Air pressure for excuting machanism |
0.5MPa |
0.59MPa |
air consumption |
4m3/h |
8m3/h |
Weight of equipment |
668kg |
1308kg |
Overall dimensions
(L*W*H) |
3700*800*2300mm |
8500*800*2300mm |
|
|
-------------------------------------------------Filling Ramp-------------------------------------------------
The filling ramp is equipment for filling oxygen into oxygen cylinders.
 |
* * * * * Main technical parameter * * * * * |
Model |
5*2 |
GC-10-1 |
working pressure |
14.7MPa |
14.7MPa |
filling connections |
10pcs |
10pcs |
Weight of equipmenbt |
166kg |
146kg |
Overall dimensions
(L*W*H) |
37900*500*795mm |
1900*600*500mm |
|
|
| |
