-----------------------------------------600m3/h Air Separation Plant-------------------------------------
* * * * * Main technical performance table * * * * *
Model |
KDON-600/1200 |
Quantity of air treated |
4800Nm3/h |
Oxygen output |
600Nm3/h |
Nitrogen output |
1200Nm3/h |
Oxygen purity |
99.5% |
Nitrogen purity |
99.99% |
Working pressure |
0.6MPa |
Period of continuous operation |
one year |
Time for starting |
36h |
Power |
560Kw |
Power consumption |
about 0.78Kwh/Nm3O2 |
|
--------------------------------------------- Air Compressor ----------------------------------------------
* * * * * Main technical performance table * * * * *
Model |
2D12W -85/8 |
Output |
85Nm3/min |
Delivery pressure |
0.8MPa |
Water consumption |
24t/h |
Motor Power |
500KW |
Motor Speed |
375r/min |
Main machine weight |
17.2t |
Overall dimensions(L*W*H) |
4800/2130/3090(mm) |
---------------------------------------------------- Freon refrigerator set------------------------------------------------------
* * * Main technical performance table * * * * *
Model |
UF-4800/8 |
Output |
4800m3/h |
Working pressure |
0.8MPa |
Motor Power |
26Kw |
Water consumption |
21.3t/h |
|
Turbo Expander
* * * * * Main technical performance table * * * * *
Model |
PLPK-17.67/5.12-0.37 / PLPK-17.67/6.35-0.4 |
Flow rate |
1200Nm3/h |
Speed |
49000-55000r/min |
Inlet pressure |
A: 0.51Mpa B: 0.7Mpa |
Delivery pressure |
0.037Mpa |
Inlet temperature |
130K |
Lubrication may |
gas lubricate |
|
| |
Purifying System
Model |
HXK-4800/8 |
Quantity of air treated |
4800Nm3/h |
Absorbing agent |
active alumina+13Xstructural formula |
Working pressure |
0.8MPa |
Period of switching over |
8h |
Capacity of heater |
105Kw |
|
------------------------------------------Turbine Expander---------------------------------------------
* * * * * Main technical performance table * * * * *
Model |
PLPK-17.67/5.12-0.37 / PLPK-17.67/6.35-0.4 |
Flow rate |
1200Nm3/h |
Speed |
49000-55000r/min |
Inlet pressure |
A: 0.51Mpa B: 0.7Mpa |
Delivery pressure |
0.037Mpa |
Inlet temperature |
130K |
Lubrication may |
gas lubricate |
|
------------------------------------------ Rectification Column------------------------------------------
This is a sieve-plate type, two-steag rectification column. It is installed and delivered as a whole out of the manufactory. The instrument panel is mounted on the front face of the cold-box.
* * * * * Main technical performance table * * * * *
Model |
FON-600/1200 |
Quantity of air treated |
4800Nm3/h |
Oxygen output |
600Nm3/h |
Oxygen purity |
99.5% |
Nitrogen output |
1200Nm3/h |
Nitrogen purity |
99.99% |
Overall dimensions(L*W*H) |
3000/3800/16000(mm |
|

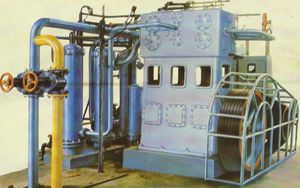

------------------------------------------ Oxygen Compressor -------------------------------------------
This machine is a vertical, 3-stage, double acting, non-lubrication compressor.
* * * * * Main technical performance table * * * * *
Model |
Z-9.2/30 |
Output |
550Nm3/h |
Max. Working pressure |
2.94MPa |
Speed |
490r/min |
Motor provided Power |
110Kw |
Main machine weight |
8500Kg |
Overall dimensions(L*W*H) |
15000*1000*2800(mm) |
This machine is a vertical, 3-stage, double acting, non-lubrication compressor. Its final pressure is up to 30kgf/cm2.
* * * * * Main technical performance table * * * * *
Model |
3Z2-5.5/30 |
Output |
330Nm3/h |
Max. Working pressure |
2.94MPa |
Speed |
500r/min |
Motor provided Mode |
Y315S-6 |
Motor provided Power |
75Kw |
Motor provided Speed |
957r/h |
Main machine weight |
3100Kg |
Overall dimensions(L*W*H) |
1110*730*1888(mm) |
|
