----------------------------100m3/h and 180m3/h Air Separation Plant------------------------
* * * * * Main technical performance table * * * * *
Model |
KDO-100 |
KDON-100/200 |
KDON-180/500 |
Quantity of air treated |
800Nm3/h |
800Nm3/h |
1200Nm3/h |
Oxygen purity |
99.5% |
99.5% |
99.5% |
Oxygen outputy |
100Nm3/h |
100Nm3/h |
180Nm3/h |
Nitrogen outputy |
0 |
200Nm3/h |
500Nm3/h |
Nitrogen purity |
0 |
99.99% |
99.99% |
Starting pressure |
0.7MPa |
0.7MPa |
0.7MPa |
Normal pressure |
0.7MPa |
0.7MPa |
0.7MPa |
Period of continuous operation |
360d |
360d |
360d |
Time for starting |
16h |
16h |
12-16h |
Weight |
21t |
21t |
26t |
Power consumption |
0.74Kwh/Nm3O2 |
0.74Kwh/Nm3O2 |
0.7Kwh/Nm3O2 |
Water consumption |
14t |
14t |
19t |
Total power |
119KW |
119KW |
175KW |
Operators |
4 |
4 |
4 |
Power supply |
380/220v,50Hz |
380/220v,50Hz |
380/220v,50Hz |
Can produce high-purity nitrogen the same time |
Can produce Medical oxygen and Industrial oxygen at the same time |
|
-----------------------------------------------Purifier-----------------------------------------------------------

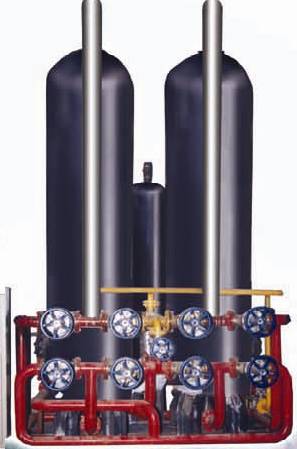

![](100-pu.jpg)
Model |
HXK-900/7(100m3/h) |
HXK-1200/8(180m3/h) |
Quantity of air treated |
900Nm3/h |
1200Nm3/h |
Absorbing agent |
13Xstructural formula |
13Xstructural formula |
Working pressure |
0.7MPa |
0.8MPa |
Period of switching over |
8-12h |
12h |
Capacity of heater |
24Kw |
27Kw |
Air Compressor
Model |
LW-15/7 (100m3/h) |
LW-22/7 (180m3/hÍ) |
Quantity of air treated |
15Nm3/min |
22Nm3/min |
Working pressure |
0.7MPa |
0.7MPa |
Water consumption |
4.8T |
8T |
Weight of equipment |
3000Kg |
1958 Kg |
Overall dimensions |
2630*1550*2330 mm |
2610*1190*2420 mm |
Power |
90Kw |
132Kw |
-------------------------------------------Rectification-------------------------------------------------
Model |
FON-100/200 |
FON-180/500 |
Quantity of air treated |
600Nm3/h |
1200Nm3/h |
Oxygen output |
100Nm3/h |
180Nm3/h |
Nitrogen output |
200Nm3/h |
500Nm3/h |
Oxygen purity |
99.5% |
99.5% |
Nitrogen purity |
99.9% |
99.99% |
Starting pressure |
0.7MPa |
0.8MPa |
Time of starting |
16h |
12-16h |
Period of continuous operation |
360d |
360d |
Overall dimensions |
1720*1720*10900 mm |
2250*1600*11600 mm |
--------------------------------------------Turbine Expander-----------------------------------------

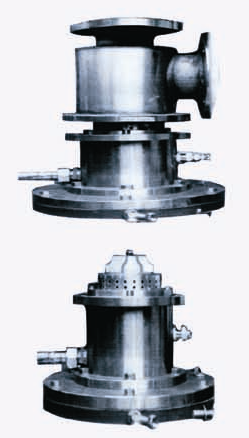

Adopt patent constructure combined moving pressure and static pressure, so its ability to resist the turbine's vortex is very strong.
Model |
PLPK-3.5/6.12-0.4 (100m3/h) |
PLPK-7X2/6.8-0.3 (180m3/h) |
Inlet pressure |
0.61MPa |
0.68MPa |
Delivery pressure |
0.04MPa |
0.03MPa |
Lubrication may |
gas |
gas |
Main machine weight |
18Kg |
20Kg |
|
-------------------------------------------Oxygen compressor------------------------------------------
Model |
Z-1.67/150 |
Quantity of air treated |
100Nm3/h |
Working pressure |
14.7MPa |
Weight of equipment |
3200Kg |
Overall dimensions |
1975*1580*2200mm |
Motor model |
Y250M-8 |
Motor power |
30Kw |
Motor speed |
|
-------------------------------------------Freon refrigerator set--------------------------------------

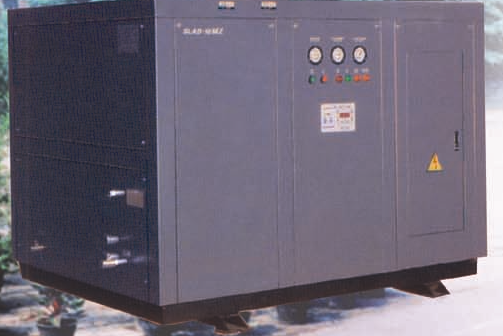

![](100-freo.png)
Model |
UF-900/8 (100m3/h) |
UF-1320/8 (180m3/h) |
Flow rate |
900Nm3/h |
1200Nm3/h |
pressure |
0.8MPa |
0.8MPa |
Water consumption |
4T/H |
5T/H |
Weight of equipment |
1200Kg |
1351Kg |
Overall dimensions |
2000*1000*1400 mm |
2100*1060*1530 mm |
Power |
4.5Kw |
7.5Kw |
|
-----------------------------------------------Filling unit------------------------------------------------
Model |
5X2 |
Working pressure |
14.7MPa |
Filling connections |
10pcs |
Weight of equipment |
166Kg |
Overall dimensions |
3790*500*795mm |
|
|
|
|
